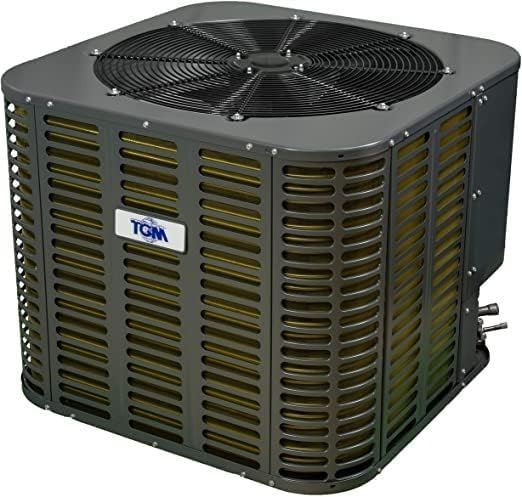

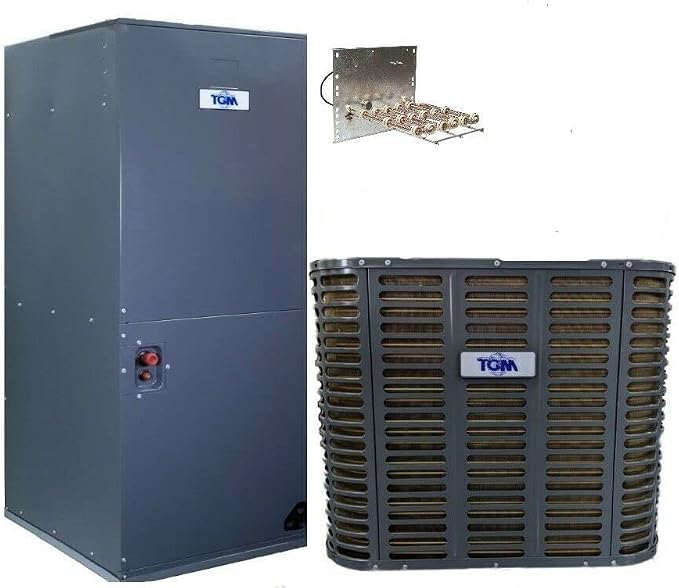

The TGM CTV515HN024A is a 2-ton heat pump condensing unit built for year-round comfort. Running on next-generation R-454B refrigerant, it delivers 23,000 BTU of cooling and 22,400 BTU of heating with up to 14.3 SEER2 and 7.5 HSPF2 efficiency ratings — fully AHRI Certified and ETL Listed.
Powered by an LG scroll compressor with an intelligent defrost program, anti-corrosion DC fan motor, and hydrophilic aluminum coil, this unit is engineered for reliability in demanding climates. It carries State of Florida Wind Load Approval, making it a solid choice for hurricane-prone regions.
Key Specs:
Cooling: 23,000 BTU | 14.3 SEER2
Heating: 22,400 BTU | 7.5 HSPF2
Refrigerant: R-454B
Power: 208-230V / 1Ph / 60Hz
MCA: 18A | MOCP: 25A
Dimensions: 21.8" × 25.0" × 21.8"

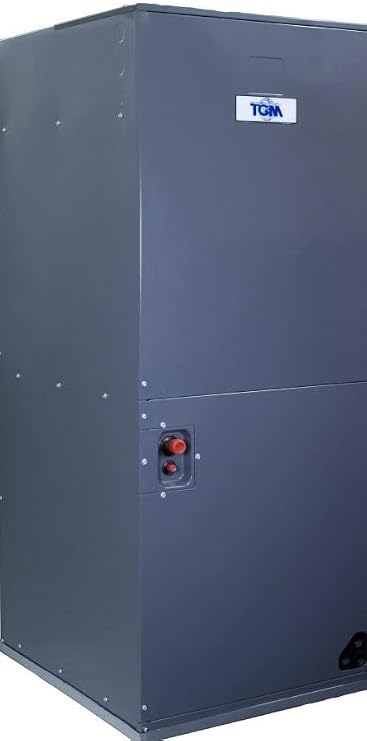

The TGM CTFRA515C001A is a 1.5-2.0-ton front return air handler designed to work seamlessly with compatible TGM R-454B condensing units. Featuring an ECM torque motor, insulated cabinet, hydrophilic aluminum coil, copper tube, and a built-in leakage sensor, this unit is built for reliable indoor performance.
Offering flexible installation with wall or stud mount options, it ships standard with front return airflow and is easily convertible to bottom return by removing the base pan panel — no additional parts needed. Compatible with electric heater kits up to 7.5kW.
