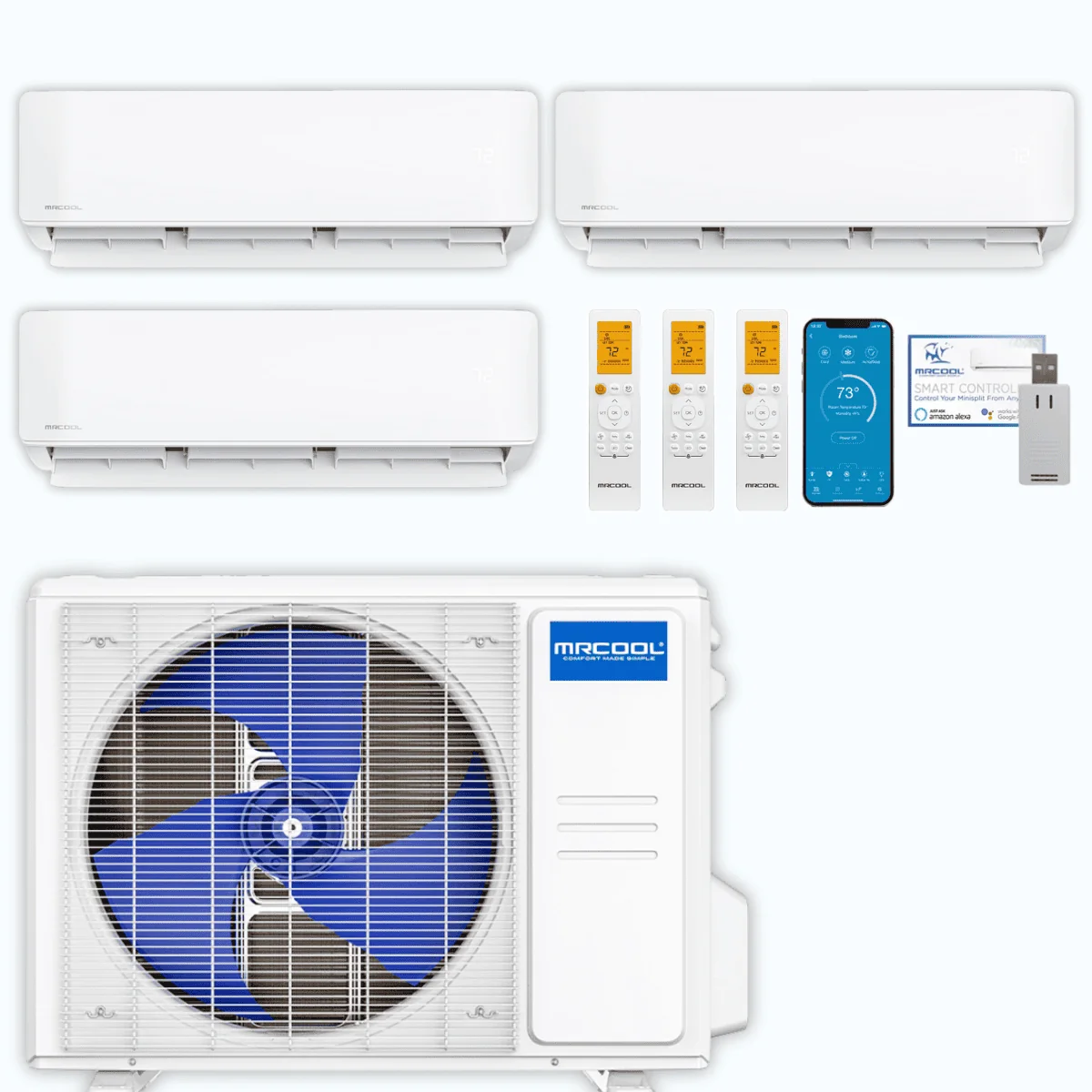

MRCOOL 3-Zone 18K BTU, 23.9 SEER2 Ductless Mini Split w/ Heat Pump (6K+6K+6K)
MRCOOL 3-Zone 18K BTU, 23.9 SEER2 Ductless Mini Split w/ Heat Pump (6K+6K+6K)
Couldn't load pickup availability
Take full control of your indoor climate with the MRCOOL DIY 5th Gen Multi-Zone Mini Split System – a cost-effective and straightforward solution for achieving powerful, energy-efficient heating and cooling without professional installation.
-
Three Rooms, Customized Comfort: Effectively heat or cool three separate areas that are up to 200 sq. ft., 200 sq. ft., and 200 sq. ft., with independent temperature settings tailored to individual preferences.
-
DIY Made Simple: Eliminate costly installation fees – no HVAC certification or specialized equipment needed. If you’re comfortable with standard hand tools, you can handle the setup yourself.
-
Efficiency That Pays Off: Offering up to 23.9 SEER2 cooling efficiency and 10 HSPF2-4heating capability, this system is designed to maximize energy savings throughout the year.
-
Dependable in Every Season: Engineered for reliability, it maintains strong heating performance even in temperatures as low as -13°F.
- Comprehensive Warranty Coverage: Protected by a 7-Year Compressor Warranty and 5-Year Parts Warranty for peace of mind.
From peak summer heat to extreme winter cold, the MRCOOL DIY Mini Split provides consistent comfort while helping you keep utility costs under control. Practical. Reliable. Efficient.
| System Type | Ductless Mini Split Air Conditioner & Heat Pump |
|---|---|
| Zones | 3 |
| Capacity | Total: 18,000 BTU Zone 1: 6,000 BTU Zone 2: 6,000 BTU Zone 3: 6,000 BTU |
| Refrigerant | R-454B |
| Warranty | 7 Years Compressor 5 Years Parts |
| OUTDOOR UNIT (18K) x 1 | |
| Model | DIY-MULTI3-18HP230D-O |
| Dimensions | 35.04" W x 13.46" D x 26.50" H |
| Cooling Capacity | 18,000 BTU |
| SEER2 | 23.9 |
| EER2 | 13.0 |
| Heating Capacity | 18,000 BTU |
| HSPF2-4 | 10.0 |
| HSPF2-5 | 7.8 |
| Outdoor Noise Level | 60.0 dB(A) |
| Outdoor Operating Temperature | Cooling: -13°F – 122°F Heating: -13°F – 75°F |
| Voltage | 208–230V |
| Phase | 1 |
| Cycle | 60Hz |
| Min Circuit Ampacity | 16.0A |
| Max Fuse Breaker | 20.0A |
| Weight | 101.63 lbs |
| Certifications | ENERGY STAR Certified AHRI Certified UL Listed ETL Listed |
| INDOOR UNIT (6K) x 3 | |
| Model | DIY-06-HP-WMAH-230D25-O |
| Dimensions | 31.57" W x 7.44" D x 11.69" H |
| Mounting Type | Wall |
| Cooling Capacity | 6,000 BTU |
| Heating Capacity | 6,000 BTU |
| Coverage Area | 100 to 200 sq. ft. |
| Liquid Line Size | 1/4" |
| Suction Line Size | 3/8" |
| Modes | Auto Mode: Automatically selects heating or cooling based on the room's temperature. Cool Mode: Lowers the room temperature to your desired setting. Heat Mode: Raises the room temperature to your desired setting. Fan-Only Mode: Circulates air without heating or cooling. Dry Mode (Dehumidification): Reduces humidity levels in the room. Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings. |
| Weight | 24.47 lbs |
